Mr.Ross
| Address: | China (mainland) Jiangsu Suzhou,No. 1255 Chengbei Road, Kunshan, Jiangsu Province 215316 |
|---|---|
Kunshan Alex Raiwlay Fastening Co., Ltd.
| Product Category: | Railway Equipments |
|---|---|
| Sales Method: | Export, Manufacture, OEM/ODM |
| Payment Term: | T/T, L/C, Western Union |
| Min. Order | Unit Price |
|---|---|
| 2000 Pieces | USD 0.03 / Piece |

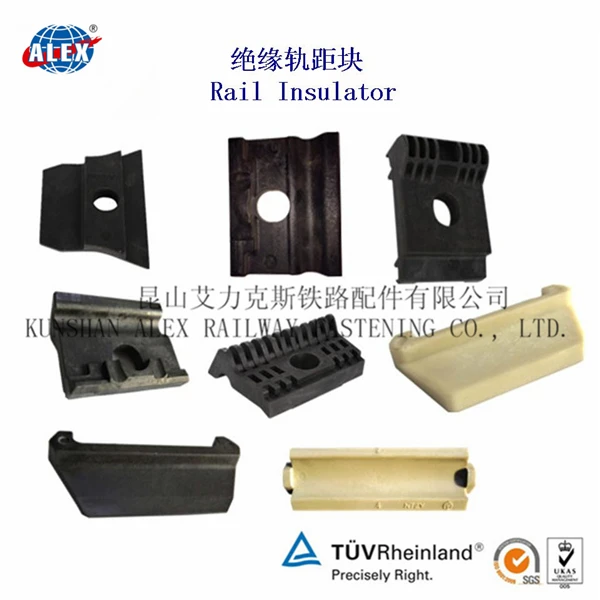

Rail insulator
Also know as railway spacer, plastic insulator, Nylon Insulator, PA66 Insulator, being widely used in rail fastening.
PA66: Nylon 66.69%, Glass Fiber 30%, Other 1%
|
No. |
Technical Parameter |
Unit |
Technical Requirement |
Value |
|
1 |
Density |
g/cm |
1.3-1.45 |
1.45 |
|
2 |
Tensile Strength |
Mpa |
≥170 |
178 |
|
3 |
Elongation |
% |
≤4.4 |
4.0 |
|
4 |
Bending Strength |
Mpa |
≥250 |
290 |
|
5 |
Impact Strength (No gap) |
KJ/m2 |
≥80 |
85 |
|
6 |
Melting Point |
℃ |
250℃ - 270 |
270 |
|
7 |
Insulation Resistance |
Ω |
≥1×108 |
5×108 |
|
8 |
Glass Fiber Content |
% |
30-35 |
35 |
|
9 |
Hardness |
HRR |
≥110 |
118 |
Railway Insulator is used in the E fastening, SKL fastening and Nabla Fastening system in the railway.
We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
Track Nylon Insulator for Fastening System
